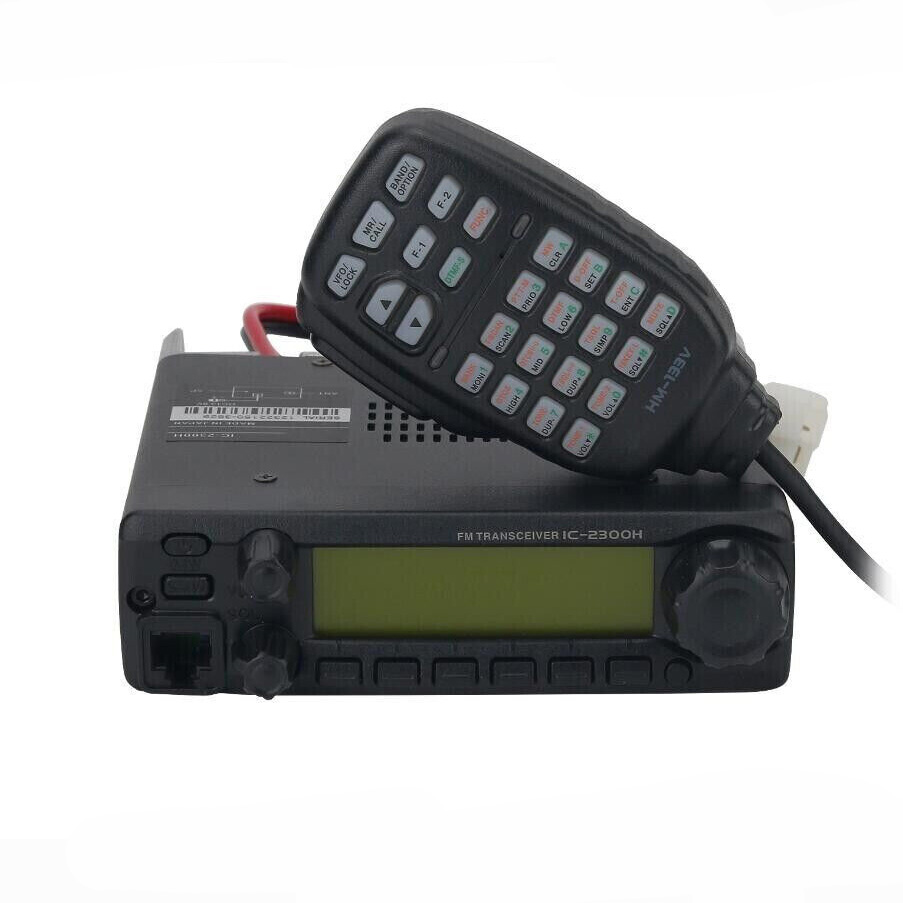

Icom IC-2300H VHF FM Mobile Transceiver for Base and Vehicle Use
The Icom IC-2300H is a 144 MHz VHF FM mobile transceiver rated at 65 W. Icom now lists it as a discontinued product, so supply is limited to what remains in the channel. The radio keeps the panel layout of the earlier IC-2200H. CQFF Radio Communication supplies it for wholesale and B2B orders.
Product Overview
The IC-2300H is a 2 m FM mobile for vehicles and base stations. Icom rates the output at four levels: 65 W, 25 W, 10 W and 5 W. Power comes from a 13.8 V DC supply, the standard for this class of radio.
Memory is generous. The set holds 207 channels: 200 regular memories, 6 scan edges and 1 call channel. Each channel carries a 6-character name. Ten memory banks under Icom’s Dynamic Memory Scan let fleets group channels by site or by function.
Tone signalling is built in. The radio encodes and decodes CTCSS and DTCS, with DTCS on transmit only. Pocket beep and tone scan complete the set. An automatic repeater function and weather channel receive with alert are included in the USA version only.
Operation stays simple. The front LCD measures 70.6 by 20 mm, and its backlight can be set to amber, yellow or green. An attenuator reduces overload from strong nearby signals, and a time-out timer protects the transmitter. Cloning through the CS-2300H software copies one set-up across a fleet.
The cabinet is a rugged aluminium diecast that spreads heat, so RF output holds up during long transmissions. Icom states the radio was tested to and passed MIL-STD 810G. The published list covers low pressure, high and low temperature, temperature shock, solar radiation, vibration and shock.
This model is no longer in production. Icom marks it as discontinued and notes that the official page content dates from the time that page was created. Treat the data here as a reference for existing fleets and spares.
CQFF Radio Communication supplies the Icom IC-2300H and its matching accessories at wholesale. Typical orders pair the radio with a spare microphone, an external speaker and a DC power cable.
Technical Specifications
- Model: IC-2300H (Icom). Type: VHF FM mobile transceiver, 2 m band
- Frequency coverage: transmit 144-148 MHz, also the guaranteed TX/RX range
- Receive coverage: 136-174 MHz
- Output power: 65 / 25 / 10 / 5 W. Icom notes it differs by version and local rules
- Channel capacity: 207 channels (200 regular, 6 scan edges, 1 call) with 6-character names
- Emission: F2D, F3E (FM). Stability: ±3 ppm
- Power supply: 13.8 V DC, ±15%. Drain: 11 A TX at 65 W, 1.5 A RX at full audio, 0.4 A standby
- Antenna: 50 ohm SO-239. Mic impedance: 600 ohm, 8-pin modular
- Temperature: -10 °C to +60 °C. Size: 140 x 40 x 162 mm. Weight: about 1.1 kg
- Receiver sensitivity: below 0.18 µV at 12 dB SINAD. IF: 46.35 MHz / 450 kHz
- Selectivity: wide >6 kHz at 6 dB and <14 kHz at 60 dB; narrow >3 kHz at 6 dB and <9 kHz at 55 dB
- Peak deviation: ±5.0 kHz wide, 2.5 kHz narrow
- Spurious emissions below -60 dBc. Spurious response rejection above 60 dB
- Audio: 4.5 W typical at 10% distortion into 4 ohm; external speaker 3.5 mm, 4 ohm
- Tone signalling: built-in CTCSS and DTCS encoder/decoder, DTCS on transmit only, plus tone scan and pocket beep
- Display: 70.6 x 20 mm LCD with selectable amber, yellow or green backlight
- Ruggedness: passed MIL-STD 810G testing; Icom states it also meets the equivalent MIL-STD 810 C, D, E and F requirements
- Version note: weather channel receive with alert and automatic repeater are USA version only

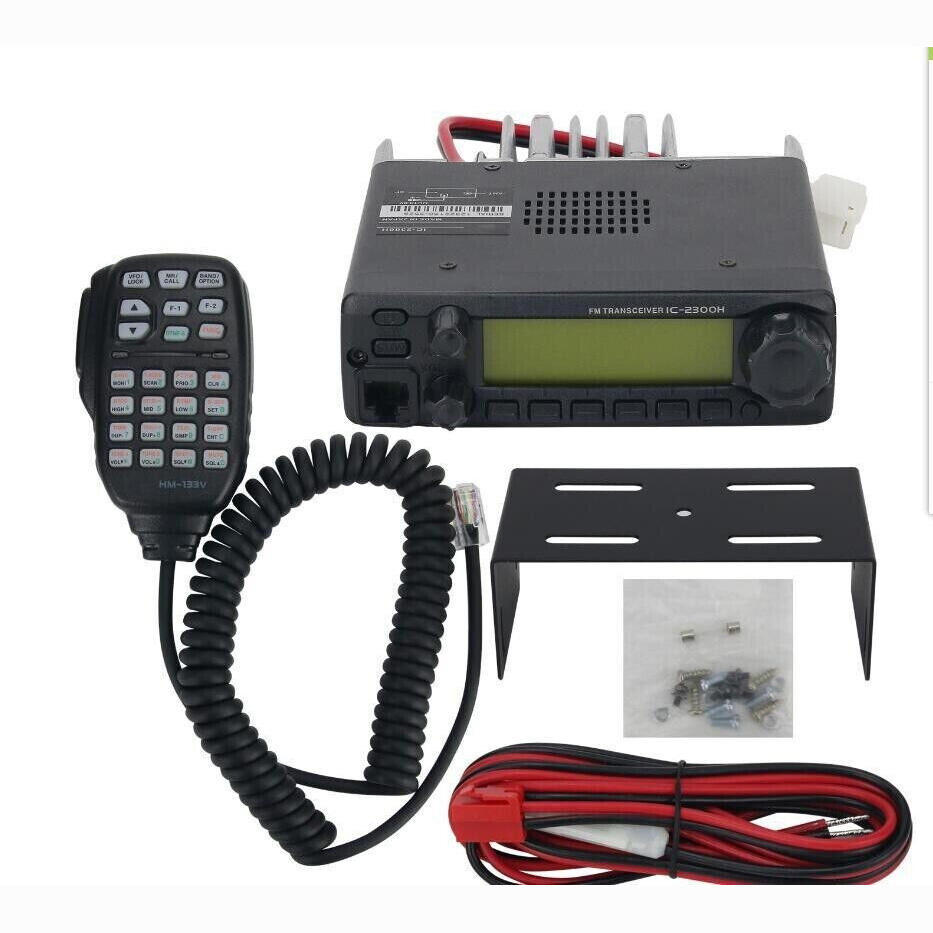

- Supplied: HM-133V microphone, bracket kit, DC power cable, spare fuses, mic hanger depending on version
- Optional: HM-154 and HM-209 mics, SP-35 speaker, OPC-1132 and OPC-347 cables, CS-2300H software, OPC-478 cables
- Status: discontinued by Icom. Data from official Icom sources
