Motorola R2 MOTOTRBO Handheld Transceiver for DMR Fleets
The Motorola R2 is the entry model in Motorola Solutions’ MOTOTRBO R series of DMR portables. It is a 64-channel handheld with no display, built for everyday commercial work. Motorola’s own data sheet calls it an everyday workhorse. CQFF Radio Communication supplies this radio for wholesale and B2B orders.
Product Overview

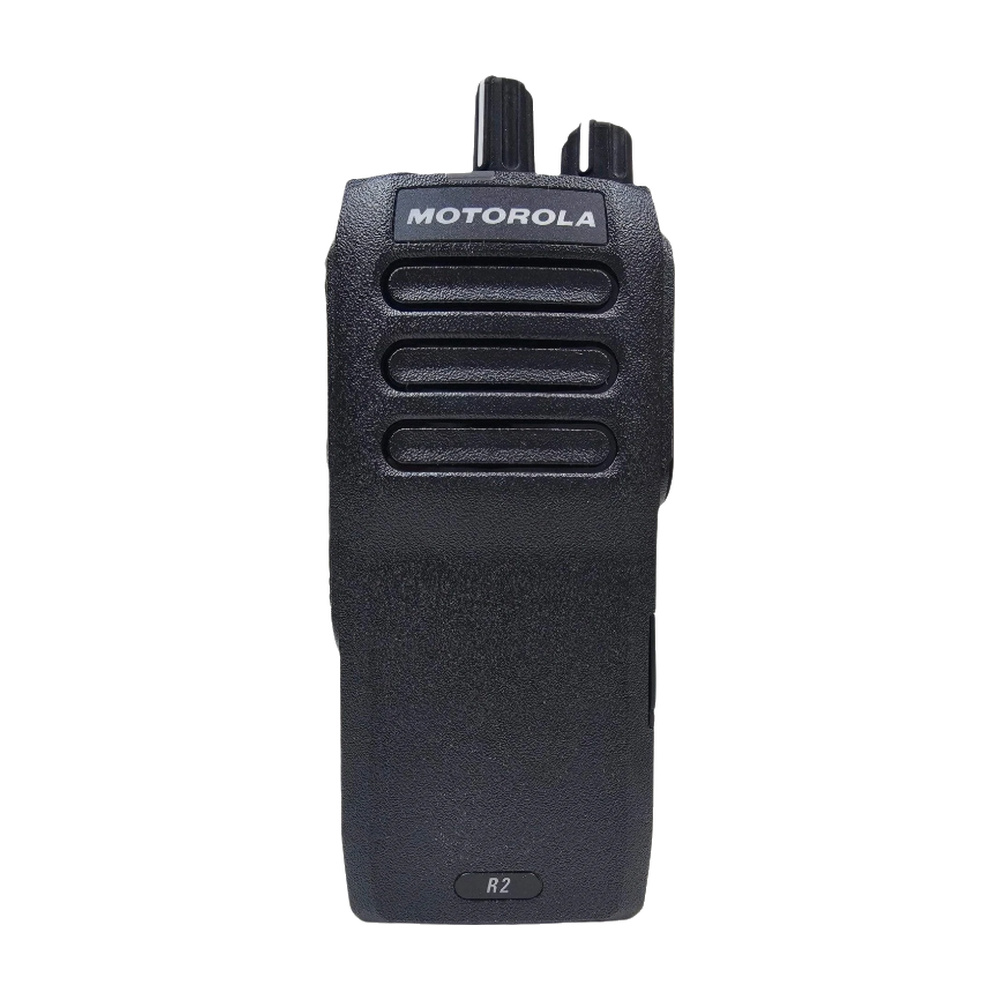

The R2 sits at the entry point of the R series, below the R5 and the R7. Motorola builds it without a display, so the front panel carries the push-to-talk bar. Two programmable buttons handle the rest. A status LED and voice announcements report the battery state instead.
Durability is the headline. The R2 carries an IP55 rating for dust and water ingress and is rugged to MIL-STD 810. Motorola states it meets MIL-STD 810 requirements across 11 environmental conditions. The radio also completed an Accelerated Life Testing programme that simulates up to five years of field use. With the 2300 mAh battery fitted it weighs under 290 g.
Audio is where the R2 earns its keep in noisy plants. SINC+ noise suppression uses algorithms to single out and remove background noise. Motorola marks that feature as optional in its data sheets. Selectable audio profiles let you lift low, middle or high frequencies. Speech loudness reaches 101 phons.
The R2 handles analogue and digital in one unit. On the digital side it works in single-site conventional mode, Dual Capacity Direct Mode and Extended Range Direct Mode. Analogue users keep Lone Worker, emergency alert, analogue scrambling and Quick Call II or MDC1200 signalling. That mix is what makes the R2 a low-cost way into DMR.
Migration is deliberate. Motorola says the R2’s user interface will feel familiar to teams already using DP1400 radios. The radio also works with selected MOTOTRBO chargers and audio accessories. Two battery options are official: the 2100 mAh slim pack and the 2300 mAh high-capacity pack.
CQFF Radio Communication stocks the R2 for wholesale buyers. Fleet orders usually combine radios with spare batteries, multi-unit chargers and remote speaker microphones, so send the full list.
Technical Specifications
- Model: MOTOTRBO R2. Brand: Motorola Solutions
- Type: portable two-way radio, analogue and digital
- Digital protocol: ETSI TS 102 361-1, -2, -3 DMR Tier II
- Channel capacity: 64 channels, with 2 programmable buttons
- Bands and typical RF output: VHF 5 W high / 1 W low, UHF 4 W high / 1 W low
- Frequency range: VHF 136-174 MHz; UHF 400-480 MHz
- Channel spacing: 12.5 and 25.0 kHz. Motorola notes that 25 kHz channels are not available in the USA
- Power supply: 7.5 V nominal
- FCC description: AZ489FT3852 (VHF), AZ489FT4971 (UHF). IC description: 89FT3852, 109U-89FT4971
- With the slim IP55 2100 mAh battery (PMNN4600): 125 x 55 x 32 mm, 261 g, 17 h analogue / 22.5 h digital
- With the high-capacity IP55 2300 mAh battery (PMNN4598): 125 x 55 x 37 mm, 286 g, 19.5 h analogue / 26.5 h digital
- Motorola footnotes: dimensions are taken at the grip area, weight excludes the antenna
- Receiver sensitivity: 0.18 µV analogue (12 dB SINAD) and 0.16 µV digital (5% BER), both typical
- Audio output: 1 W rated / 3 W maximum, at 3% typical distortion
- Maximum speech loudness: 101 phons (ISO 532B)
- Sealing and ruggedness: IEC 60529 IP55 dust and water protection; MIL-STD 810C to 810H
- Operating temperature: -30 °C to 60 °C for the radio alone. Minimum operating temperature with a battery is -20 °C
- Motorola marks SINC+ noise suppression and enhanced privacy as optional, not standard
- Official note: the North America data sheet lists these models for the North America region only
- Official R2 accessories include the PMNN4600A and PMNN4598A batteries, PMLN7109A rapid charger, PMLN6588A multi-unit charger and PMMN4148A RM110 remote speaker microphone
