Description

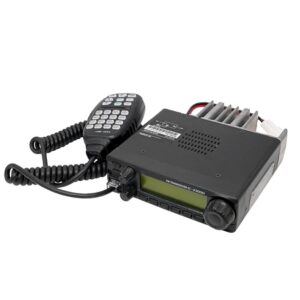

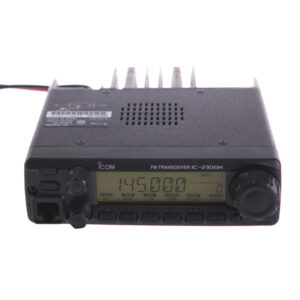

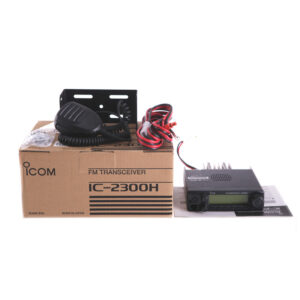

IC-2300H VHF FM Mobile Transceiver | 65W High Power Vehicle Radio
The ICOM IC-2300H is a professional VHF FM mobile transceiver built for reliable long‑distance communication. With a stable 65W output power, rugged MIL‑STD construction, and user‑friendly operation, it’s the top choice for vehicle‑mounted communication in fleets, construction, security, and amateur radio use.

Key Features
- 65W Stable High Power: 4‑step power (65/25/10/5W) for flexible range; aluminum chassis for efficient heat dissipation.
- 207 Memory Channels: 200 regular + 6 scan edges + 1 call channel; programmable 6‑character names.
- Built‑in CTCSS/DTCS: Encoder/decoder for quiet standby and secure repeater access.
- MIL‑STD 810G Rugged: Shock, vibration, and temperature tested for harsh environments.
- Weather Alert Function: Built‑in NOAA weather receive and alert for safety.
- Multiple Scan Modes: DMS (Dynamic Memory Scan), VFO, memory, and tone scan.
- Large Backlit LCD: 70.6×20 mm display with adjustable backlight for clear visibility.
- Thermal & Over‑Current Protection: Auto power reduction for amplifier safety.
- VOX Hands‑Free Operation: For safe driving and hands‑free communication.
Technical Specifications
| Item | Details |
|---|---|
| Model | IC-2300H |
| Frequency | RX: 136–174 MHz; TX: 144–148 MHz |
| Output Power | 65W / 25W / 10W / 5W (13.8V DC) |
| Memory Channels | 207 (200 regular + 6 scan edges + 1 call) |
| Antenna Impedance | 50Ω (SO‑239) |
| Power Supply | 13.8V DC ±15% |
| Current Drain | TX (65W): 11A; RX standby: 0.4A |
| Operating Temp | -10°C to +60°C |
| Dimensions | 140(W) × 40(H) × 162(D) mm |
| Weight | Approx. 1.1 kg (2.43 lb) |
| Audio Output | 4.5W on 4Ω speaker |
| Protection | MIL‑STD 810G, thermal & over‑current protection |

Ideal Applications
- Fleet & logistics vehicles
- Construction & engineering teams
- Security patrol & property management
- Amateur radio (ham) operators
- Off‑road & outdoor adventure
- Industrial & warehouse operations
