Description

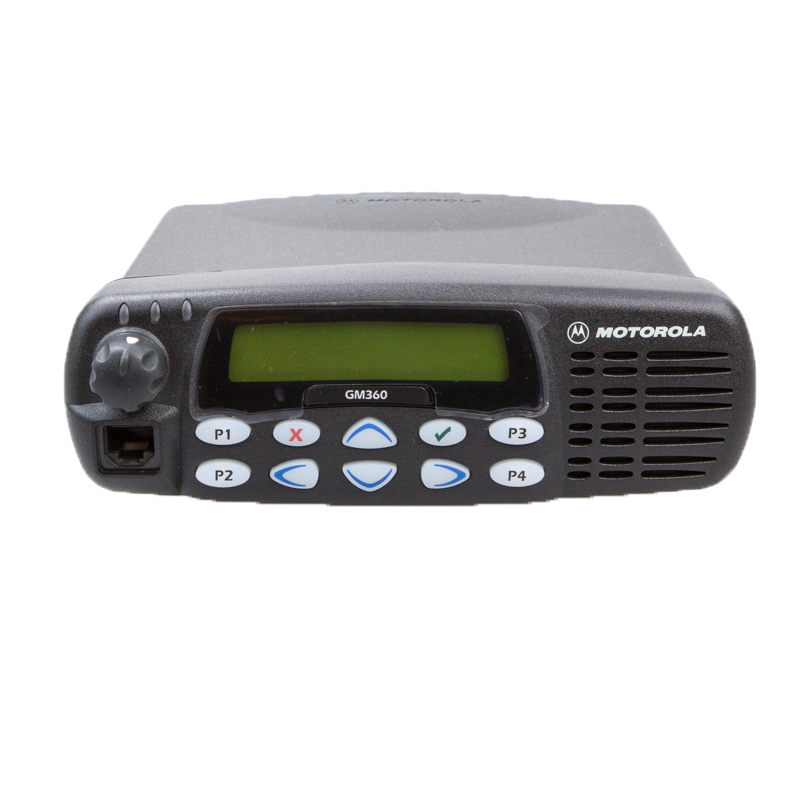

Motorola GM360 Professional Mobile Radio with 255 Channels

The Motorola GM360 is an analog mobile radio in Motorola’s Professional Series. It gives fleets clear voice coverage over wide areas. The radio holds 255 channels and runs from a 13.2 Vdc vehicle supply.

Product Overview

The GM360 is built for day-to-day dispatch work. Typical users run delivery fleets, taxi fleets, utilities, construction sites and warehouses. The radio mounts on a dashboard or under the dash. A three point mounting tray ships with it.

A 14-character alphanumeric display shows channel names and call details. Programmable buttons put common functions within reach. It is both PC programmable and field programmable. This is an analog radio, not DMR or MOTOTRBO.

Private Line sub-audible signalling keeps the speaker quiet until a call carries the right code. 5-tone selective signalling handles selective calls and radio stun. Emergency signalling, lone worker, external alarm and status calls are all built in. Channel scanning, call forwarding, car radio mute and VOX complete the feature set.

X-Pand voice compression sharpens speech at the edge of coverage. Audio output is 3 W through the internal speaker. An external speaker runs at 7.5 W or 13 W.

The GM360 comes in three band groups. VHF covers 136-174 MHz and UHF covers 403-470 MHz, both at 1-25 W. Low band splits run at 25-60 W. Availability depends on country law, so not every variant sells in every country.

The chassis meets MIL-STD 810 in revisions C, D, E, F and G. The method table covers low pressure, temperature, rain, humidity, salt fog, dust, vibration and shock. The radio also meets TIA/EIA 603 and carries an IP54 rain rating.

The standard pack includes a battery power cable, an enhanced compact microphone and a mounting tray. Motorola’s model chart lists that microphone as the MDRMN4025, which we also stock separately. CQFF Radio Communication supplies the Motorola GM360 for wholesale orders.

Technical Specifications

• Model: GM360
• Brand: Motorola
• Channels: 255
• Channel spacing: 12.5, 20, 25 kHz
• Frequency stability: ±2.5 PPM, ±5 PPM low band, -30 to +60 °C
• Power supply: 13.2 Vdc (10.8-15.6 Vdc), negative vehicle ground
• Bands: VHF 136-174 MHz (1-25 W), UHF 403-470 MHz (1-25 W), low band 29.7-50.0 MHz in three splits (25-60 W)
• Sales model codes: MDM25KHF9AN5_E, MDM25RHF9AN5_E, MDM25BKF9AN5_E, MDM25CKF9AN5_E, MDM25DKF9AN5_E
• Dimensions: 186x180x59 mm (1-25 W) or 198x180x59 mm (45-60 W), plus 9 mm with the volume knob
• Weight: 1450 g low power, 2064 g high power
• Display: 14-character alphanumeric
• Sensitivity: 0.30 µV, 0.25 µV typical, 12 dB SINAD
• Intermodulation: >65 dB
• Adjacent channel selectivity: 80 dB at 25 kHz, 75 dB at 20 kHz, 65 dB at 12.5 kHz
• Spurious rejection: 80 dB at 20/25 kHz, 75 dB at 12.5 kHz
• Rated audio: 3 W internal, 7.5/13 W external
• Audio distortion: 3% typical
• Audio response: +1/-3 dB, 300-3000 Hz
• Modulation limiting: ±2.5, ±4.0, ±5.0 kHz at 12.5, 20, 25 kHz
• FM hum and noise: -40 dB at 12.5 kHz, -45 dB at 20/25 kHz
• Adjacent channel power: -60 dB at 12.5 kHz, -70 dB at 20/25 kHz
• Conducted spurious, FCC Part 15: -57 dBm below 1 GHz, -47 dBm above
• Voice processing: X-Pand voice compression
• Signalling: Private Line, 5-tone selective signalling, status calls, call forwarding
• Features: programmable buttons, PC and field programmable, option board, data, scanning, memory channel, car radio mute, VOX
• Safety: emergency signalling, lone worker, external alarm
• Environmental: MIL-STD 810 C, D, E, F, G; TIA/EIA 603; IP54 rain
• Standard pack: radio, battery power cable, enhanced compact microphone, 3 point mounting tray
• Compliance: R&TTE 1999/5/EC; ISO 9001
• Data specified at +25 °C
• Sources: only values published in Motorola’s GM360 specification sheet and GM series model chart appear here
